CZ Scorpion 3+ spare parts

CZ Scorpion 3+ spare parts

Diagram of spare parts of CZ Scorpion 3+. May be helpful when looking for spare parts for your CZ Scorpion 3+.

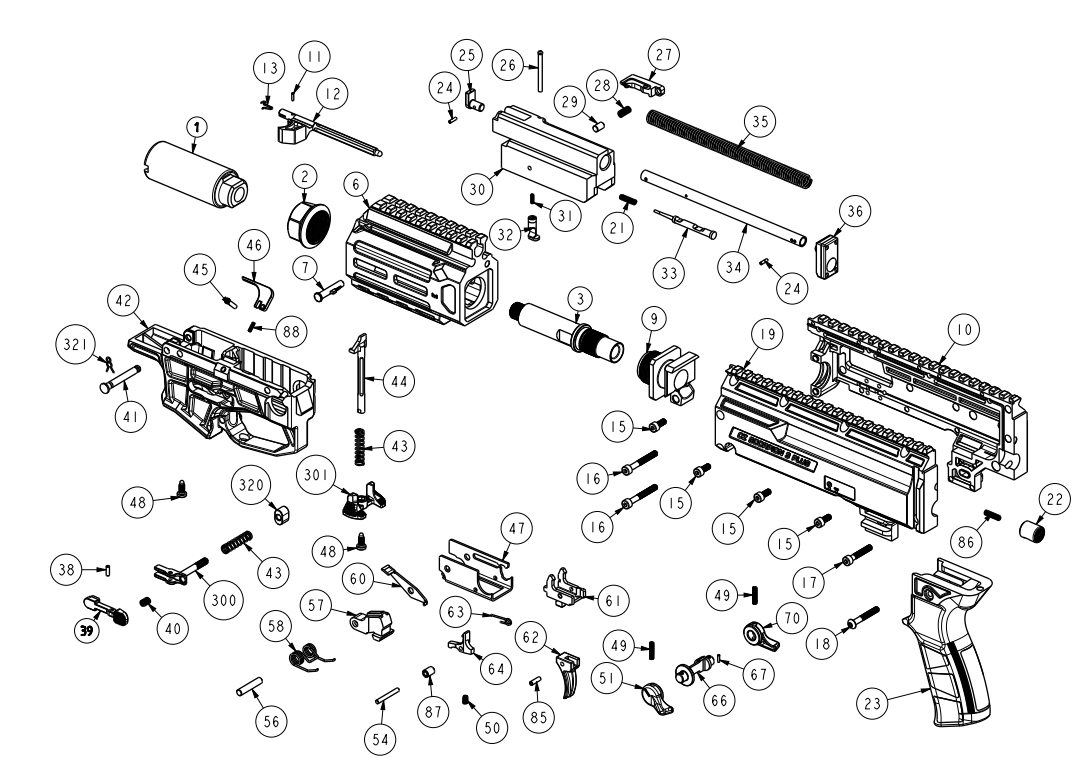

CZ Scorpion 3+ spare parts diagram

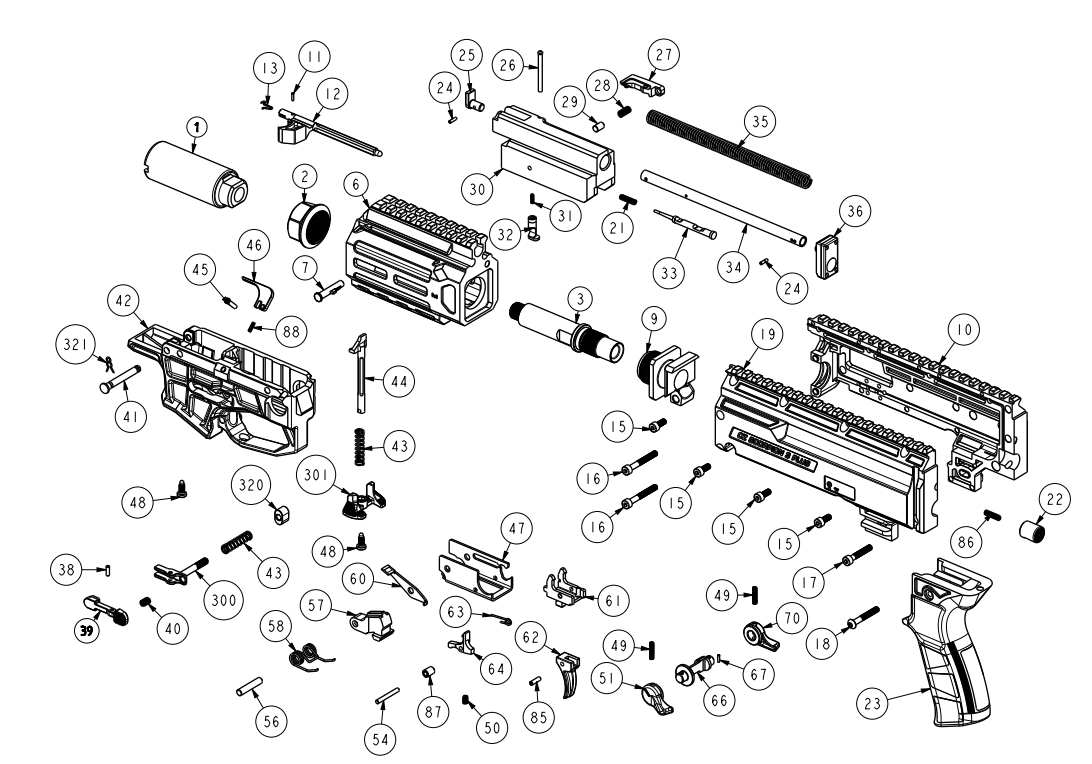

CZ Scorpion 3+ spare parts diagram

List of CZ Scorpion 3+ spare parts

#1 Muzzle device
#2 Barrel/Handguard nut
#3 Barrel
#6 Handguard
#7 Handguard pin
#9 Fixation insert
#10 Right receiver
#11 Charging handle spring pin
#12 Charging handle
#13 Charging handle spring
#15 Short receiver screw (4x)
#16 Long receiver screw (2x)
#17 Medium receiver screw
#18 Pistol grip screw
#19 Left receiver
#21 Striker spring
#22 Rear head retaining button
#23 Pistol grip
#24 Locking pin (2x)
#25 Front locking stud
#26 Extractor pin
#27 Extractor
#28 Extractor spring
#29 Extractor spring base
#30 Bolt
#31 Striker block spring
#32 Striker block
#33 Striker
#34 Guide stud
#35 Recoil spring
#36 Buffer/Rear locking stud
#38 Magazine catch pin
#39 Magazine catch
#40 Magazine catch spring
#41 Disassembly pin
#42 Trigger unit casing/Lower housing
#43 Bolt release spring (2x)
#44 Bolt release
#45 Ejector pin
#46 Ejector
#47 Trigger case
#48 Case securing screw (2x)
#49 Control screw (2x)
#50 Disconnector spring
#51 Left fire mode lever
#54 Trigger pin
#56 Hammer pin
#57 Hammer
#58 Hammer spring
#60 Striker block lever
#61 Trigger housing/Sear
#62 Trigger
#63 Trigger spring
#64 Disconnector
#66 Safety plug
#67 Safety pin plug
#70 Right fire mode lever
#85 Trigger pin
#86 Rear head retaining button spring
#87 Trigger insert
#88 Ejector spring
#300 Magazine catch holder
#301 Ambidextrous slide release
#320 Magazine catch button
#321 Disassembly pin spring
