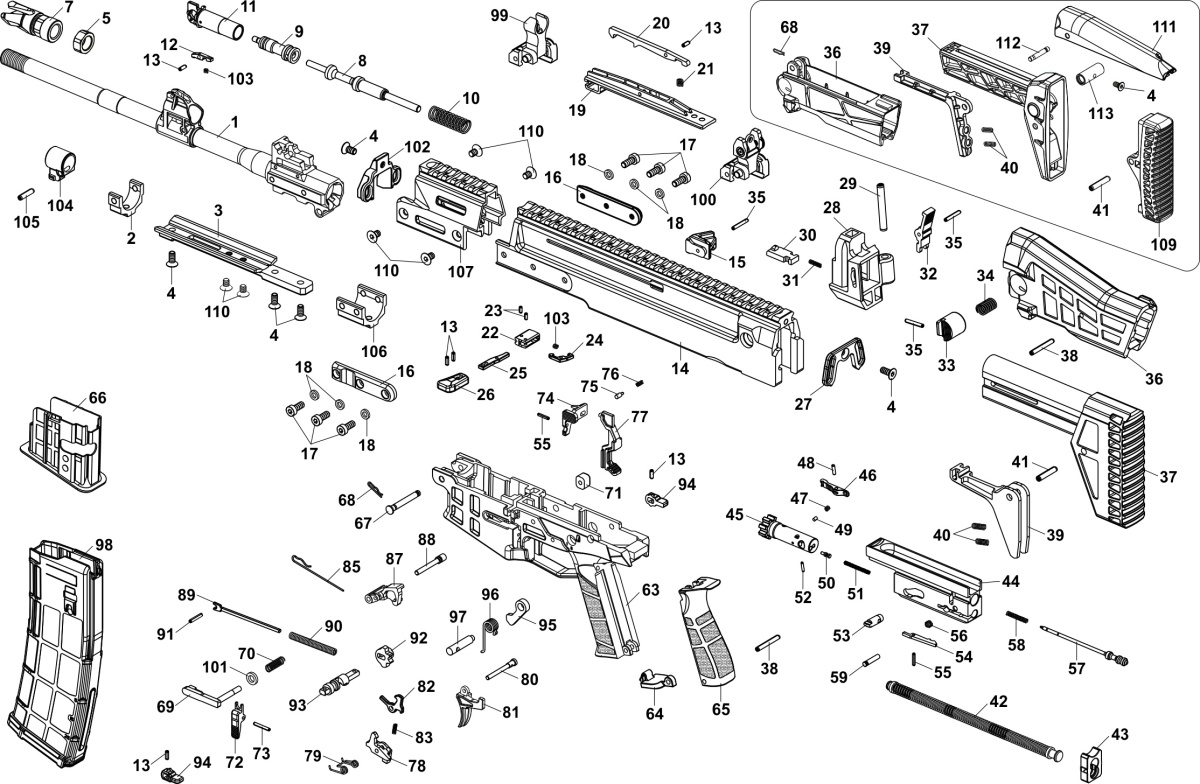

Diagram of spare parts of CZ Bren 2. May be helpful when looking for spare parts for your CZ Bren 2.
List of CZ Bren 2 spare parts
#1 Barrel – assembly
#2 Front barrel sleeve
#3 Lover cover plate
#4 Screw M5x10 ISO 14581 (5x)
#5 Flash hider nut
#6 –
#7 Flash hider
#8 Piston
#9 Piston front
#10 Piston spring
#11 Gas tube (assembly)
#12 Gas tube detent
#13 Spiral pin 3×8 MCK (6x)
#14 Receiver
#15 Deflector
#16 Receiver side rail (2x)
#17 Screw M5x10 ISO 14580 (6x)
#18 Securing screw washer (6x)
#19 Breech block carrier (cocking) handle guide
#20 Breech block carrier (cocking) handle guide detent
#21 Breech block carrier (cocking) handle guide detent spring
#22 Breech block carrier (cocking) handle base
#23 Spiral pin 2.5×6 HCK (2x)
#24 Breech block carrier (cocking) handle detent
#25 Breech block carrier (cocking) handle
#26 Breech block carrier (cocking) handle grip
#27 Rear swivel
#28 Rear head
#29 Spiral pin 6×45 MCK
#30 Rear head detent
#31 Rear head detent spring
#32 Rear head detent lever
#33 Shoulder stock detent
#34 Shoulder stock detent spring
#35 Spiral pin 3×20 MCK (3x)
#36 Shoulder stock base
#37 Shoulder stock
#38 Spiral pin 4×30 MCK (2x)
#39 Shoulder stock positioner
#40 Shoulder stock positioner spring (2x)
#41 Spiral pin 6×30 MCK
#42 Recoil mechanism (assembly)
#43 Buffer
#44 Breech block carrier
#45 Breech block
#46 Extractor
#47 Extractor spring
#48 Extractor pin
#49 Spring element
#50 Ejector
#51 Ejector spring
#52 Spiral pin 2X10 HCK
#53 Operation pin
#54 Firing pin block
#55 Spiral pin 2.5×12 HCK (2x)
#56 Firing pin block spring
#57 Firing pin
#58 Firing pin spring
#59 Firing pin plug (assembly)
#60 –
#61 –
#62 –
#63 Pistol grip with trigger (trigger mechanism) and magazine well
#64 Pistol grip plug
#65 Interchangeable back strap
#66 Magazine well insert
#67 Disassembling pin
#68 Disassembling pin spring
#69 Magazine release
#70 Magazine release spring
#71 Magazine release button
#72 Magazine release (left)
#73 Spiral pin 2.5×18 MCK
#74 Breech release
#75 Breech release spring pin
#76 Breech release spring
#77 Breech release lever
#78 Trigger
#79 Trigger spring
#80 Trigger pin
#81 Trigger
#82 Disconnector
#83 Gas tube pin spring
#84 Automatic trigger
#85 –
#86 –
#87 Hammer
#88 Hammer pin
#89 Main spring guide
#90 Main spring
#91 Spiral pin 3×16 HCK
#92 Fire mode selector
#93 Fire mode selector pin
#94 Fire mode selector lever
#95 Fire mode selector detent
#96 Fire mode selector detent spring
#97 Fire mode selector detent pin
#98 Magazine
#99 Front sight
#100 Rear sight
#101 Magazine release washer
#102 Front swivel
#103 Gas tube detent spring (2x)
#104 Bayonet base
#105 Spiral pin 4×16 HCK
#106 Connection barrel sleeve
#107 Handguard
#108 –
#109 Stock butt plate
#110 Screw M5x8 ISO 14581 (4x)
#111 Cheekpiece
#112 Cheekpiece disassembling pin
#113 Butstock QD insert
