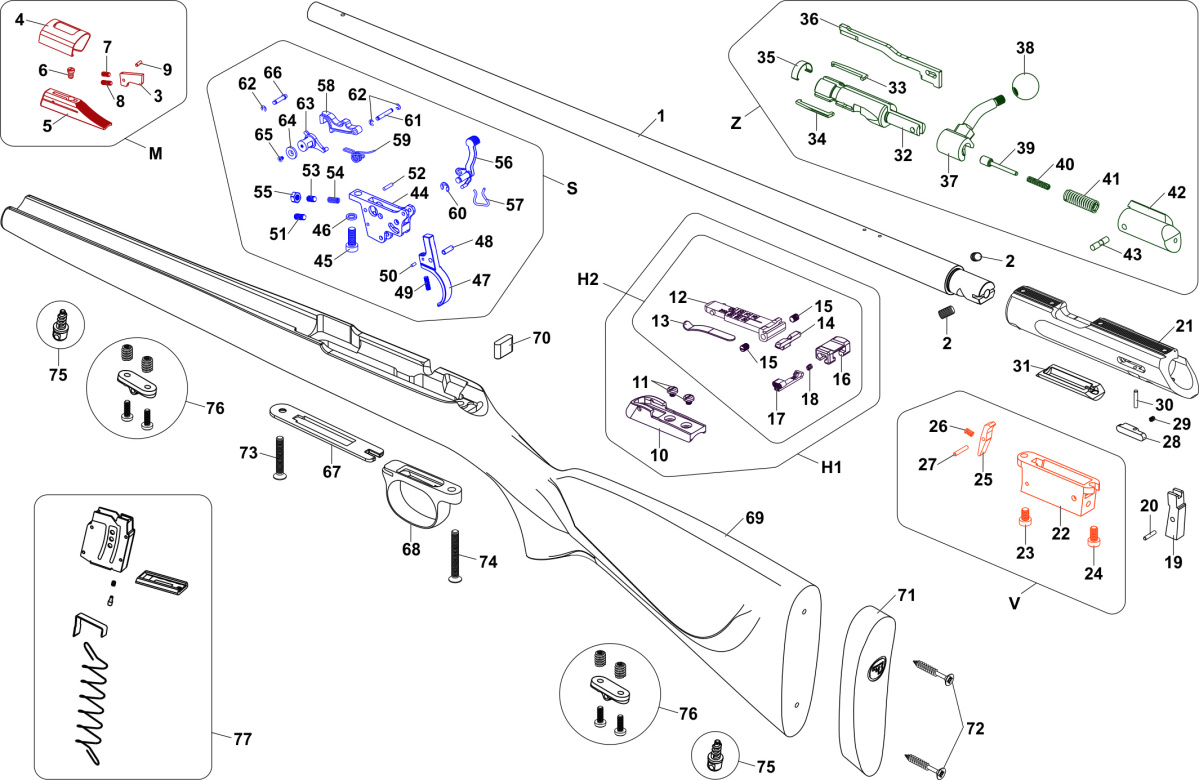

Diagram of spare parts of CZ 457. May be helpful when looking for spare parts for your CZ 457 rifle.
List of CZ 457 spare parts
#1 Barrel
#2 Barrel Screw (2x) |
#3 Front Sight
#4 Front Sight Cover
#5 Front Sight Base
#6 Front Sight Base Screw
#7 Front Sight Setting
Screw (A)
#8 Front Sight Setting
Screw (B)
#9 Front Sight Pin
#10 Rear Sight Base
#11 Rear Sight Base Screw
(2x)
#12 Rear Sight Leaf
#13 Rear Sight Leaf Spring
#14 Rear Sight Plate
#15 Rear Sight Screw (2x)
#16 Slider
#17 Rear Sight Button
#18 Rear Sight Button
Spring
#19 Magazine Housing
Insert
#20 Magazine Housing
Insert Pin
#21 Receiver
#22 Magazine Housing
#23 Magazine Housing Front
Screw
#24 Magazine Housing Rear
Screw
#25 Magazine Catch
#26 Magazine Catch Spring
#27 Magazine Catch Pin
#28 Bolt Catch
#29 Bolt Catch Spring
#30 Bolt Catch Pin
#31 Bolt Guide
#32 Bolt
#33 Extractor
#34 Holder
#35 Extractor Spring
#36 Striker
#37 Bolt Handle
#38 Bolt Handle Ball
#39 Cocking Indicator
#40 Cocking Indicator Spring
#41 Striker Spring
#42 Lock
#43 Lock Pin
#44 Trigger Mechanism
Holder
#45 Holder Screw
#46 Holder Screw Washer
#47 Trigger
#48 Trigger Pin
#49 Trigger Setting Screw (C)
#50 Nylon Thread of Trigger
Setting Screw
#51 Trigger Dead-Travel
Screw (B)
#52 Nylon Thread of Trigger
Dead Travel Screw
#53 Trigger Pull Setting Screw
(A)
#54 Trigger Pull Setting Screw
Spring
#55 Trigger Pull Screw Nut
#56 Safety
#57 Safety Spring
#58 Trigger Bar
#59 Trigger Bar Spring
#60 Safety Yoke Ring
#61 Trigger Bar Pin
#62 Safety Yoke Ring (3x)
#63 Cam
#64 Cam Washer
#65 Cam Washer Screw
#66 Cam Pin
#67 Frame
#68 Trigger Guard
#69 Stock
#70 Stock Insert
#71 Butt Plate
#72 Butt Plate Screw (2x)
#73 Front Connecting Screw
#74 Rear Connecting Screw
#75 Trigatti Sling Swivel Holder
(2x)
#76 Safari Sling Swivel Holder
(2x)
#77 Magazine
