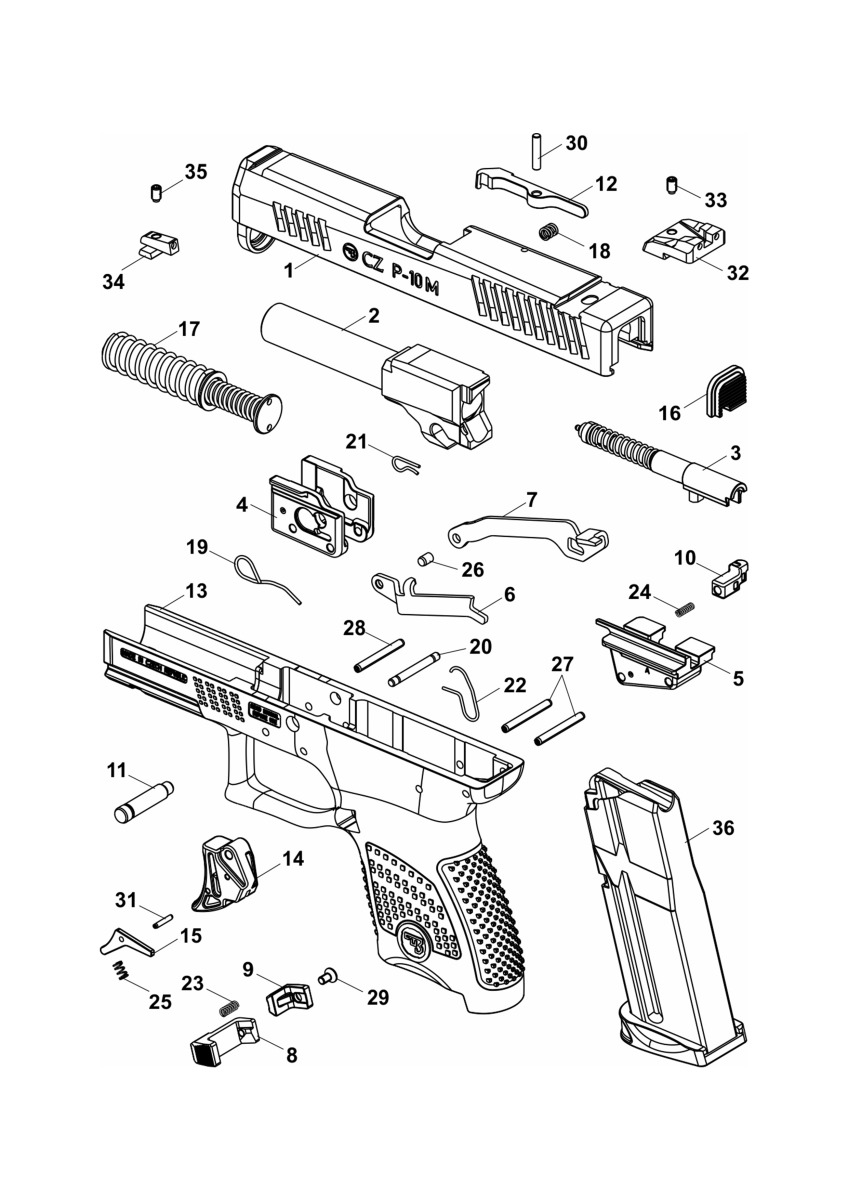

Diagram of spare parts of CZ P-10M. May be helpful when looking for spare parts for your CZ P-10M pistol.
List of CZ P-10M spare parts
#1 Slide
#2 Barrel
#3 Firing pin (assembly)
#a) Firing pin
#b) Firing pin guide
#c) Spring holder (2x)
#d) Firing pin spring
#4 Insert – front
#5 Insert – rear
#6 Slide stop lever
#7 Trigger bar
#8 Magazine catch
#9 Magazine catch plug
#10 Trigger bar disconnector
#11 Disassembly pin
#12 Extractor
#13 Frame
#14 Trigger
#15 Trigger safety
#16 Slide cover
#17 Recoil mechanism
#a) Recoil spring guide
#b) Recoil spring screw
#c) Recoil spring bushing
#d) Inner recoil spring
#e) Outer recoil spring
#18 Extractor spring
#19 Slide stop spring
#20 Trigger pin
#21 Trigger pin spring
#22 Trigger bar spring
#23 Magazine catch spring
#24 Trigger bar disconnector spring
#25 Trigger safety spring
#26 Trigger bar pin
#27 Rear insert coiled pin (2x)
#28 Front insert coiled pin
#29 Magazine catch plug screw
#30 Extractor pin
#31 Trigger safety pin
#32 Set of sights
#33 Front sight screw
#34 Rear sight screw
#35 Magazine assembly
